Steriflow Tank Bottom Sanitary Diaphragm Valves

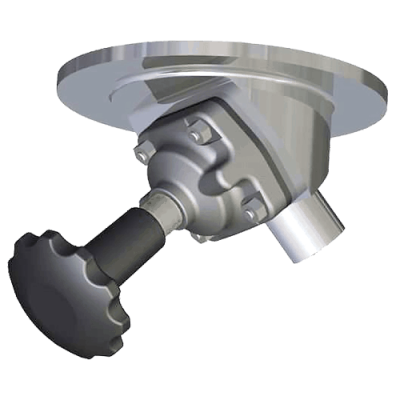

Tank bottom diaphragm valves are sterile vessel outlet valves. They are designed for use at the bottom vessels to enable draining of process fluids while minimizing dead leg to prevent waste entrapment and contamination from bacteria or microorganisms.


Tank Bottom Sanitary Diaphragm Valves

Steriflow - Montreal Bronze Factory
Features & Benefits:

Applications:

Manual or air actuated outlet valve for sterile vessel

Upstream:

  • Bioreactor/fermenter: vessels
  • Perfused bioreactors: retentate or permeate vessels

Downstream:

  • Outlet valve for process vessels in the following production areas: separation, filtration, chromatography, formulation, fill finish

Specifications:

Available sizes: 1/2″ – 4″ (DN15 – DN100)

Outlet Connection type: tri-clamp, extended tube end

Additional ports or tandem access valve: as special option

Materials:

  • Standard: Barstock, ASME SA479 316L (UNS 31603) or EN 10272:2000 GR 1.4435
  • Optional: AL-6XN®, Hastelloy® C-22 and others readily available

Surface Finish:
Wetted Interior:

  • Standard
    – ASME BPE SF1, 20 Ra µin (0,5 Ra µm)
    – ASME BPE SF5, 20 Ra µin (0,5 Ra µm) electropolish
  • Optional: ASME BPE SF4, 15 Ra µin (0,4 Ra µm) electropolish. Better finish upon request

Exterior:

Standard: 63 Ra µin (1,6 Ra µm)

Optional: 40 Ra µin (1,0 Ra µm) and better upon request

Manufacturer
:
Steriflow - Montreal Bronze Factory

Tank Bottom Sanitary Diaphragm Valves (tankbottom_diaphragmvalves.pdf, 455 Kb) [Download]
