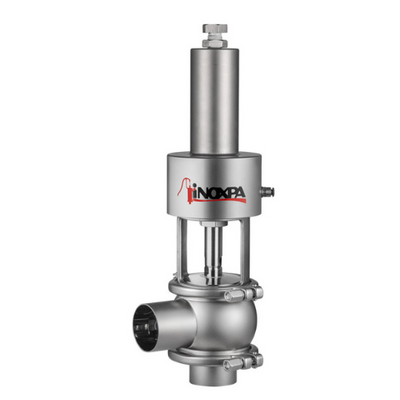

Inoxpa Innova J Sanitary OverFlow By-Pass Relief Valves

The INNOVA type J valve is a pneumatic single seat valve designed for use as overflow valve in hygienic installations.
Its most important applications involve operating as a by-pass valve for positive displacement pumps or protecting equipment against excessive pressure.
Adjusting the screw on the upper part sets the spring pressure, which sets the valve’s closing pressure.
The valve opens when the set pressure is exceeded.
The valve comes with an actuator that enables liquid to flow during CIP cleaning processes.


Innova J OverFlow By-Pass Relief Valves

INOXPA

Design and Features:

  • Opening pressyre range: 50kPa - 600kPa (0,5 bar - 6 bar).
  • Easy assembly/disassembly of internal parts by loosening a clamp fastener.
  • Open lantern allows visual insoection of shaft sealing.
  • 360 º adjustable body.



Manufacturer
:
INOXPA

Innova J OverFlow By-Pass Relief Valves (Inoxpa_Data_sheet.pdf, 664 Kb) [Download]
