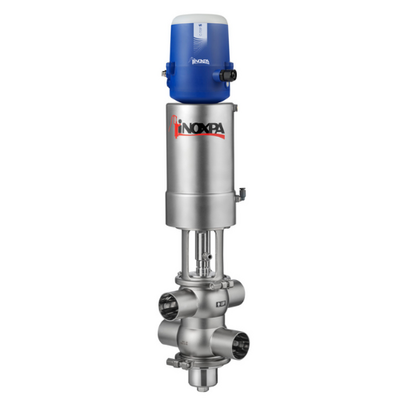

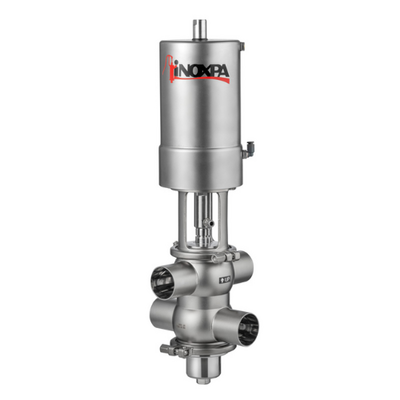

Inoxpa Innova S Sanitary MixProof Double Seat Valves

The INNOVA S-type valve is a pneumatic shut-off double seat valve for hygienic applications. The leackage chamber, under atmospheric pressure, situated between the two seats ensures a safe interface between the two liquids, one of which is usually a CIP solution (cleaning agent).
The leakage chamber is cleaned via the CIP nozzle situated in the lantern.


Innova S Sanitary Double Seat Mixproof Valves

INOXPA

Design and features:

  • Hygienic design according to EHEDG.
  • No leakage during the opening/closing of the valve.
  • Balanced lower seat.
  • Single-acting pneumatic actuator.
  • Easy assembly/disassembly of internal parts.
  • Open lantern allows visual inspection of shaft sealing.
  • 360º adjustable body.
Manufacturer
:
INOXPA

Innova S Sanitary Double Seat Mixproof Valves (10.251.33.01EN.pdf, 677 Kb) [Download]
