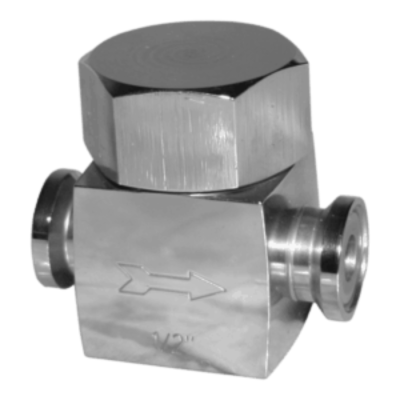

Steriflow CSDT Series Sanitary Steam Traps

Polished, tri-clamp end, low to high flow thermodynamic sanitary steam trap for horizontal or vertical installation in plant steam or non-validated clean steam applications in Biopharmaceutical clean room environments. Can also be used in Food & Beverage and Consumer Health & Beauty applications.Plant steam or non-validated clean steam condensate drainage in a clean room environment:
  • heat exchangers
  • vessel jackets
  • WFI still
  • clean steam generator


CSDT Series Sanitary Steam Traps

Steriflow Valves
Features & Benefits:
  • 316L body construction
  • Operates in any position
  • Solid cast 316L body with 20 Ra μin (0,5 Ra μm) external finish standard

Specifications:

  • Size: 1/2″ & 3/4″ (DN15 & DN20)
  • Installation Connection Orientation: Vertical (preferred), Horizontal
  • Connection Type: ASME BPE tri-clamp
  • Max. Allowable Pressure/Temperature: 227 psig (15,6 barg) 842°F (450°C)
  • Materials of Construction: Body: casting, AISI 316L; Disc: AISI 316L
  • Surface Finish: Internal: as machined and cast; External: 20 Ra μin (0,5 Ra μm) mechanical polish standard, except at junction of threaded cap and body
Manufacturer
:
Steriflow Valves

CSDT Series Sanitary Steam Traps (csdt.pdf, 104 Kb) [Download]
