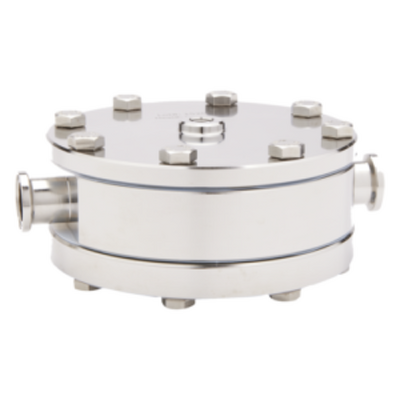

Steriflow Food & Beverage FD Series Sanitary Back-Pressure Regulating Valves

The FD Series valves are designed for use in sanitary industries such as food & beverage. The unique dome loaded multi-orifice design delivers instantaneous response, frictionless operation, and precision control across a very wide range of flow rates, 100 times industry norms. Its simple design has only one moving part making it easy to maintain and its compact design simplifies process layout. The FD Series valves are dome loaded using a 1:1 set point pressure with inert gas or air controlled with a manual or electronic pressure regulator. The FD valve with an electronic pilot set point regulator is a perfect match for computer automated control in food & beverage processing. This is an Equilibar product.


FD Series

Steriflow Food & Beverage

Features & Benefits:

  • USP Class VI
  • <20Ra finish
  • Electropolished
  • Crevice Free
  • Can be cleaned in either the forward or reverse flow direction

Specifications:

  • Sizes: 1/2″ – 3″
  • End Connections: Sanitary tri-clamp
  • Max Pressure: 150 psi (10 bar)
  • Body Materials: SS316L: Hastelloy C, custom
  • Cv Range: IE-7 to 36
Manufacturer
:
Steriflow Food & Beverage

FD Series (FoodandBevCC__1_.pdf, 1,075 Kb) [Download]
