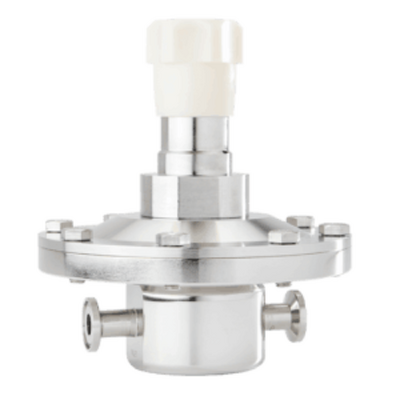

Steriflow JSRLFLP Series Sanitary Pressure Reducing Valves

Features & Benefits:

• Stable outlet pressure setpoint regulation as low as 1 psig (68 mB)
• Top entry design facilitates in-line cleaning and maintenance
• Barstock construction guarantees material integrity and quality surface finish
• Four Cv’s from 0.01 to 0.2 guarantee an application fit
• Large, proprietary Jorlon diaphragm provides exceptionally long life and sensitivity to minimal pressure changes
• Low lock-up with EPDM seat

Note: These valves may be used on non-cavitating liquid, or clean steam applications. However, they are not drainable. Steriflow Engineering must review application before acceptance.

Specifications:

• Size: 1/4″ – 3/4″ (DN8 – DN20)
• End Connections: ASME BPE, DIN and ISO Tri-clamp, Tube weld end and NPT, VCR connections optional – Contact Factory
• Cv (Kv): 0.012 (0,01) – 0.20 (0,17)
• Max. Pressure/Temperature: Tube Weld & Tri-clamp: 150 psi @ 350°F (10,3 bar @ 177°C) with PEEK seats; 150 psi @ 150°F (10,3 bar @ 66°C) with PTFE seats; 150 psi @ 275°F (10,3 bar @ 135°C) with EPDM seats
  NPT: 150 psi @ 350°F (10,3 bar @ 177°C) with PEEK seats; 150 psi @ 150°F (10,3 bar @ 66°C) with PTFE seats; 150 psi @ 275°F (10,3 bar @ 135°C) with EPDM seats
• Setpoint Range: 1 psi (0,07 bar) to 75 psi (5,2 bar)
• Wetted Material: ASME SA479 316L (UNS 31603) is standard. EN 10272:2000 GR 1.4435, AL-6XN®, Hastelloy C-22 and others are optional
• Surface Finish: ASME BPE SF5, 20Ra (0,5µm) electropolish is standard; Non-EP is optional, as are other finishes
• Diaphragm Material: Jorlon, FDA & USP Class VI
• Soft Seat Option: PTFE, PEEK, EPDM, all materials to FDA and USP Class VI
